Ball-Rod System Experimental Module  (#35200)

The ball-rod system is designed for automation, mechanical electronics, electrical engineering and other professional basic control course design of special teaching experimental equipment to meet the principles of automatic control, modern control engineering, electrical engineering, motor and drag courses such as experimental outline requirements The

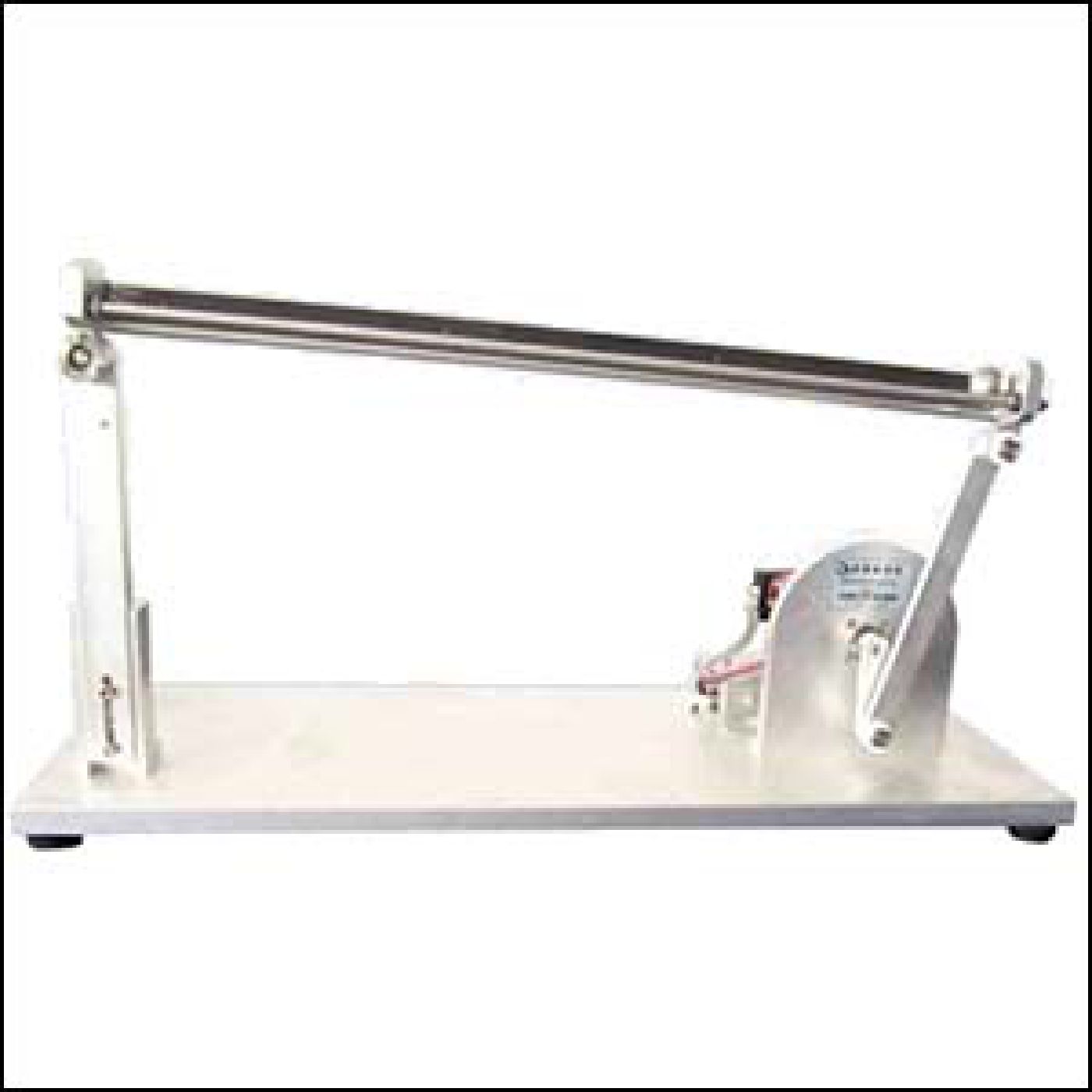

The ball-rod system is composed of a rod system, a stainless steel ball, a linear displacement sensor, an angle displacement sensor and a DC motor. The motion control module is integrated into the rod system object.

The rod system experiment object through the DRLink reconfigurable computer control platform, you can design a variety of control systems to control the ball on the track position.
